Wall bracket

Wall bracket

Convenient and insulated two-piece wall bracket.
Operating system

Operating system

A concealed and fully integrated operating system with remote-controlled tubular motor.
Moveable panels

Moveable panels

The retractable roof panels are fitted with the necessary Hi-Fin brushes, running and guiding wheels, and EPDM gaskets. Full air and water tightness are guaranteed by specially designed bayonet closures between the sliding panels. The following panel fillings are available:
Fixed panels

Fixed panels

The fixed panels have the same basic characteristics as the moveable sections. When the roof is opened, the moveable panels slide under the fixed panels in a way that ensures constant ventilation between the various elements.
Aluminium self-supporting frame

Aluminium self-supporting frame

Includes a built-in operating system for the sliding roof sections. The breadth of the roof beams is 135mm. The interior side of the roof beams is covered with a durable synthetic coating.
Gutter - Gutter box - Thermal break

Gutter - Gutter box - Thermal break

Separate and easy-to-assemble gutter and gutter box with optimum insulation. This combination is fitted with continuous EPDM sealing and allows a pitch between 7º and 38º.
 sitemap ∣ NL - FR - DE


  zenyd sliding roof

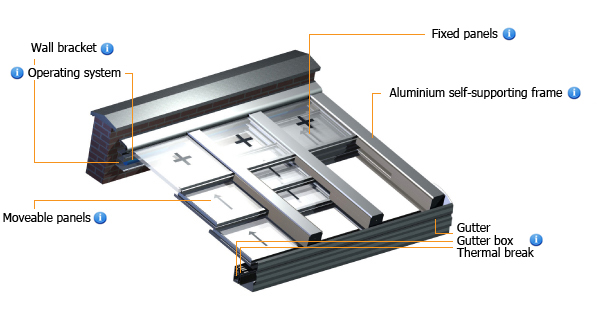

General drawing

zenyd technische doorsnede
